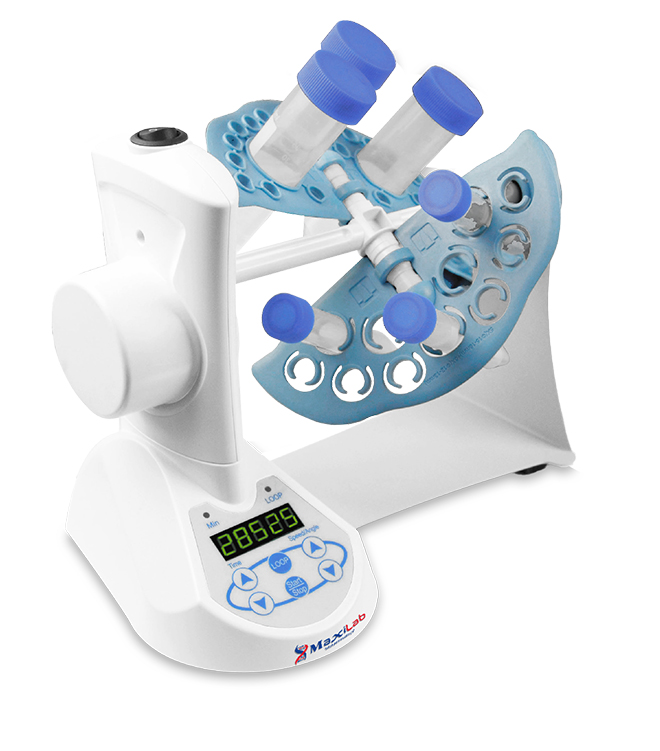

MS3-MaxiMix3D 3D Rotating Mixer
MS3-MaxiMix3D, 3D Rotating Mixer
3D Rotating Mixer is an uniquely designed instrument which can mix samples by horizon, vertical and any angled rotation with a variety of sample tubes. It is widely used in molecular hybridization, blood and other samples that need to be mixed.
Unique combination of adjustable rotating frame.
A variety of rotation modes, from mild type to somersault type rotation mode.
Widely used in molecular biology, histochemistry, biochemistry, clinical applications, etc.
Provide three types of rotating frame.
MS3-MaxiMix3D product with reciprocating oscillation function from 20 degree angle to 99 degree angle.
Oil-free bearings are built in both ends of the bracket.
|
Specification |
MS3-MaxiMix3D |
|
Speed Range |
10rpm - 40rpm (adjustable, digital) |
|
Reciprocating Swing Angel Range |
20°-99° (adjustable) |
|
Time Range, digital |
1s~999min/ Continuously |
|
Voltage |
AC 220V, 50/60Hz |
|
Power |
4W |
|
Fuse |
250V, 1A, ɸ5x20 |
|
Dimension |
W.240 x D.145 x H.210mm |
|
Net Weight |
1.2kgs |
|
Code |
Description |
|
Mix3D-A |
5 centrifuge tubes of 10ml / 15ml (ɸ15mm - ɸ16mm) +6 centrifuge tubes of 5ml / 7ml (ɸ12mm - ɸ13mm) |
|
Mix3D -B |
3 centrifuge tubes of 50ml + 18 centrifuge tubes of 0.5ml |
|
Mix3D -C |
18 centrifuge tubes of 1.5ml / 2.0ml |
