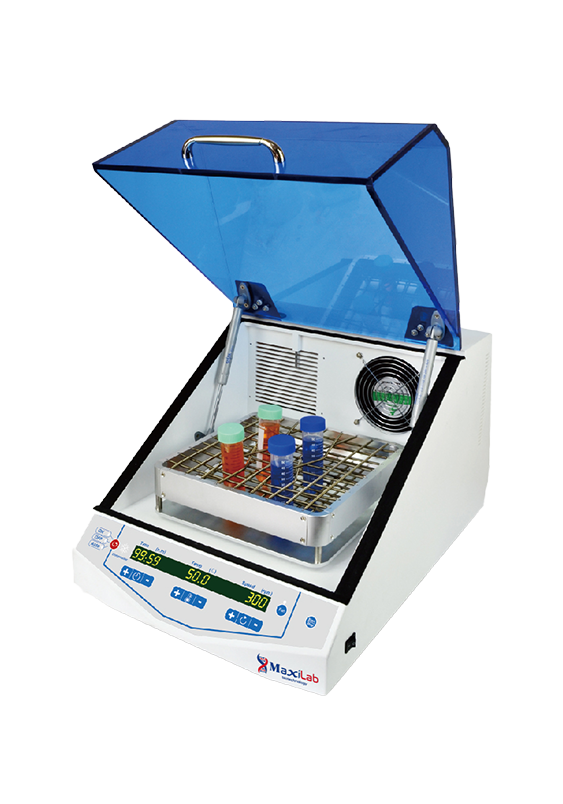

MS3-MaxiShake60, Shaking incubator

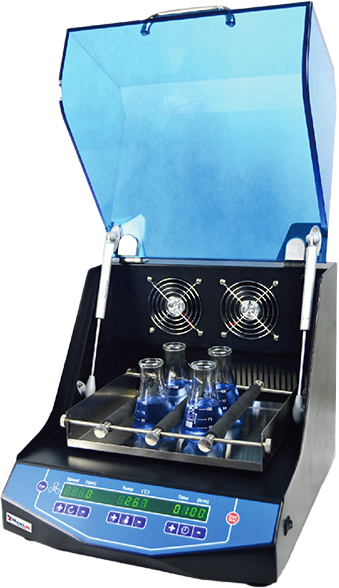

MS3-MaxiShake60R, Refrigerated Shaking incubator

MS3-MaxiShake60 and MS3-MaxiShake60R shaker incubator is combining incubation and shaking function. MS3-MaxiShake60R model has heating and cooling function.

Shaking incubator application areas include - microbial and cell culture cultivation, protein expression, solubility studies, general mixing, as well as other various applications in the fields of biology, biotechnology, moleculer biology and chemistry.

PID control speed technology

Compact design, good temperature uniformity, low noise.

Micro-processor controls temperature and shaking speed. Built in timing function

Equipped with cover switch. When the cover is open; air circulation, heating/cooling(for MS3-MaxiShake60R) and shaking will automatically stop. No temperature overshoot problem

Unique speed control circuit to ensure shaker smoothly start to avoid liquid spilling.

Circulation fan speed can be adjusted to avoid high-speed of the circulation fan making the sample volatilize.

Independent temperature alarm system. Heating is cut off automatically when temperature is over the limited value.

Sounds alarms after program finishes.

Brushless DC motor, long life and maintenance-free.



Get information
by phone
Get information
by E-mail

Specification

MS3-MaxiShake60

MS3-MaxiShake60R

Shaker Speed Range

50-300 rpm

50-300 rpm

Shaking Method

Orbital shaking

Orbital shaking

Shaking Orbit

20mm

20mm

Temperature Control Range

R.T. +5°C - 60°C

+4°C - 60°C (R.T. at 25°C)

Temperature Stability at 37°C

± 0,3°C

± 0,3°C

Temperature Display Accuracy

0,1°C

0,1°C

Digital Timer Control Range

1min-99h59min

1min-99h59min

Capacities

6 x 250ml erlen flask

12 x 100ml erlen flask

4 x microplate

6 x 250ml erlen flask

12 x 100ml erlen flask

4 x microplate

Voltage

AC 220-230V, 50/60Hz

AC 220-230V, 50/60Hz

Power

400W

600W

Fuse

250V, 1A/ 5A ,  Ø5x20

250V, 1A/ 5A ,  Ø5x20

Dimentions, WxDxH

360x435x320 mm

385x560x320 mm

Net weight

18,7 kgs

25,8 kgs

MS3-MaxiShake60-60R Shaking incubator refrigerated-ENG-Maxilab Biotechnology.pdf
