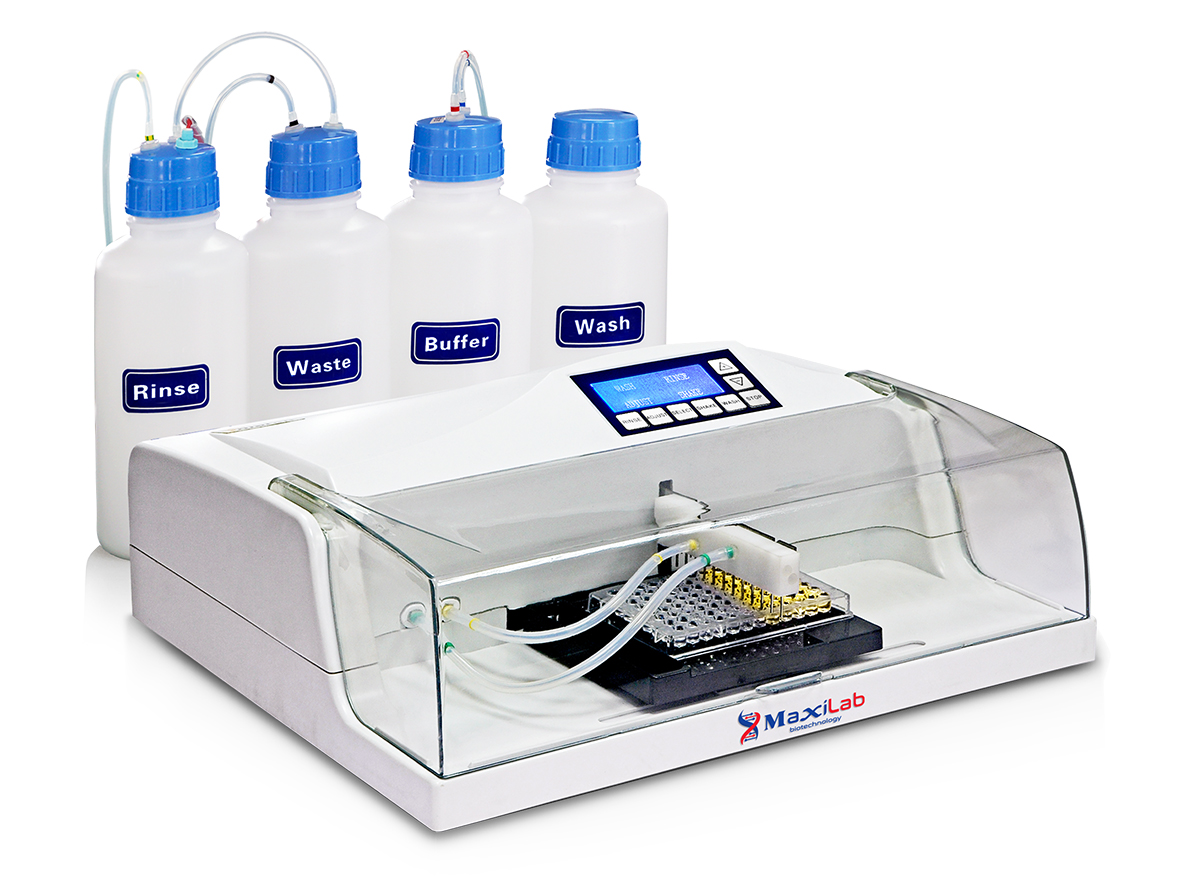

MS4-MaxiWash96 Microplate Elisa Washer
Microplate washer is equipped with liquid position sensor to avoid the washing liquid used up or waste liquid from overflow, minimize the risk and avoid the liquide being sucked into the pump to break the equipment.
Microplate washer includes 3pcs 2.0L washing bottles and 1 pcs 2.0L waste bottle.
Main Features;
* Large LCD display, menu designed for convenient use
* Whole plate washing or single strip washing
* 12-way and 8-way manifold included
* Low residual volume by two pipettes
* Complete bottom washing
* Shaking and dipping function
* Automatic monitoring of vacuum and pressure ,automatic rinse cycle
* Flat, V-bottom or U-bottom plate and strips washing
* Large memory to store up to 48 user programmed wash protocols
* Emergency stop available and liquid warning
Specification |
MS4-MaxiWash96 |
Display |
High brightness LCD |
input |
8 key membrane keyboard |
Manifold |
8 pins and 12 pins |
Wash Mode |
Strip mode and plate mode |
Washing method |
Single and two point |
Wash strips |
1-12 adjustable |
Applicable well |
Flat, V-bottom or U-bottom |
Washing times |
0-99 times adjustable |
Dipping time |
0-3600s adjustable |
Shaking time |
0-600s adjustable |
Residual volume |
≤1μL/well |
Liquid volume |
10-3000ul/well, increase by 10ul |
Sipping time |
0.1-9.9s |
Storage Capacity |
More than 100 user defined wash board procedures |
Dimensions; LxWXH |
448×382×163mm |
Net weight |
8kgs |
Operating Environment |
Temperature 5℃--40℃, Max humidity 80% |
